An entity relationship diagram (ERD) is a graphical representation of different information which shows the entity ie. people, objects, places, concepts or events and their relationship. Its shows the information stored in a database. In other word, it is a graphical representation database. It also provides the means of communication. The logical structure of database can be expressed graphically by an E-R diagram. It uses following component to built up E-R diagram:
⬜ It represents entity.
◯ It represents relationship among entities.
♢ It represents attributes of entities.
─ It is used to show the link of attributes to entities and entities to relationship and vice versa.
◯ It represents relationship among entities.
♢ It represents attributes of entities.
─ It is used to show the link of attributes to entities and entities to relationship and vice versa.

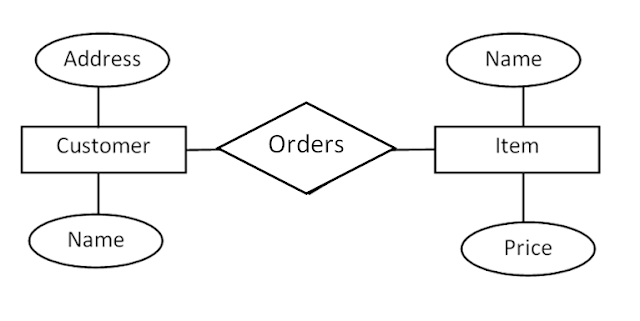

Fig: An E-R diagram for the relationship Customer Orders Item |
Entity, Attribute and Relationship
Entity:
An entity is a name of ‘thing’ or ‘person’ or ‘object’ in the real world. Students, employee, house, table etc are the example of entity.
Attribute:
The properties that characterize an entity set are called its attribute. Customer_id, student_no, etc. are the example of attributes.
Relationship:
The association between entities is called relationship. Customer order item, Harry reads books etc. are the example of relationship.
